Material: high quality low-carbon steel wire, blackk wire or stainless steel wire

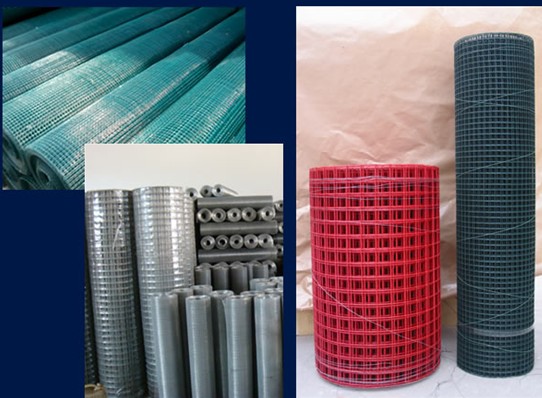

Surface treatment: electro-galvanized, hot-dipped galvanized, PVC coated

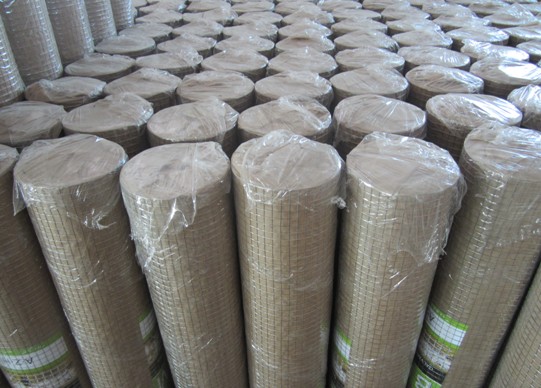

Packing: in rolls packed with moistureproof paper and plastic film. Custom packing available at request
Manufacture process: The galvanized electric wire mesh, welded after galvanized electric welded mesh and plastic coated mesh are made with high-quality iron wire by automatic equipment.
Characters: smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Specification:
|
Wire diameter (mm) |
Aperture diameter (mm) |
package diameter (mm) |
weight (kg) |
|
0.55 |
1/4"×1/4" |
200 |
17 |
|
0.63 |
1/4"×1/4" |
215 |
20 |
|
0.63 |
1/2"×1/2" |
215 |
10 |
|
0.70 |
3/8"×3/8" |
200 |
18.2 |
|
0.70 |
3/4"×3/4" |
200 |
9.1 |
|
0.70 |
1/2"×1/2" |
200 |
13.8 |
|
0.80 |
3/8"×3/8" |
230 |
23.8 |
|
0.80 |
3/4"×3/4" |
230 |
11.9 |
|
0.80 |
1/2"×1/2" |
230 |
17.8 |
|
0.80 |
1"×1" |
230 |
8.9 |
|
0.91 |
3/4"×3/4" |
260 |
15 |
|
0.91 |
1/2"×1/2" |
260 |
22.6 |
|
0.91 |
1"×1" |
260 |
11.3 |
|
1.00 |
3/4"×3/4" |
280 |
18.5 |
|
1.00 |
1/2"×1/2" |
280 |
27.8 |
|
1.00 |
1"×1" |
280 |
13.7 |
|
1.00 |
2"×2" |
280 |
7 |
|
1.20 |
3/4"×3/4" |
300 |
28 |
|
1.20 |
1/2"×1/2" |
300 |
43 |
|
1.20 |
2"×2" |
300 |
10.3 |
|
1.20 |
1"×1" |
300 |
20 |
|
0.90 |
1"×2" |
260 |
8.4 |
|
1.00 |
1/2"×1" |
280 |
21 |
|
1.00 |
1"×2" |
280 |
10.4 |
|
1.20 |
1/2"×1" |
300 |
32.5 |
|
1.20 |
1"×2" |
300 |
15 |
|
1.40 |
1"×2" |
340 |
22.5 |
|
1.60 |
1"×2" |
360 |
27.5 |
|
1.80 |
1"×2" |
370 |
34.5 |
|
2.10 |
1"×2" |
390 |
42.5 |
|
