Gabion

Name: Welded gabion
Material:Galvanized Steel Wire
Type:Gabion Mesh
Weave Styple:Plain Weave
Wire Dia:3.0-6.0mm
Technique:Woven




Application:Gabion Mesh

Mesh:5*5,5*10,10*10,7.5*7.5

Material,galvanized wire.

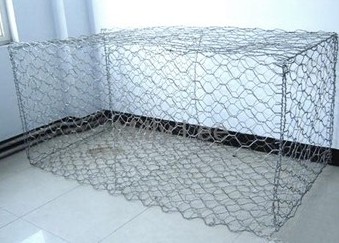

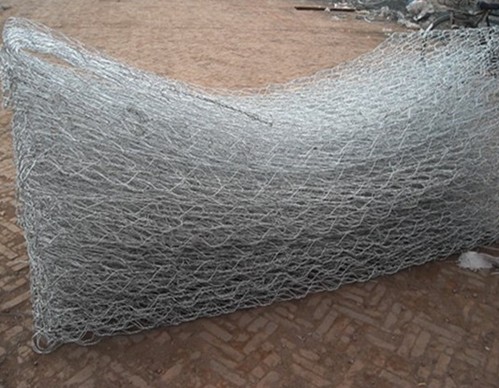

Gabion is used as gabion box(gabion basket), gabion mattress or gabion mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.

Standard Mesh And Wire Sizes

Mesh Size

Mesh wire Dia (mm)

Edge wire

(mm)

60 x 80

2.0   3.8

2.7 4.0

80 x 100

2.2

3.0

100 x 120

2.7

3.4

Gabion Box Sizes

Length (m)

Width (m)

Height (m)

1

0.5 or 1

0.5 or 1

1.5

1

0.5 or 1

2

0.5 or 1

0.5 or 1

3

1

0.5 or 1

4

1

0.5 or 1

Mattress Sizes

Length (m)

Width (m)

Height (m)

3

2

0.17, 0.23 or 0.30

6

2

0.17, 0.23 or 0.30

USAGE:

·         Preventing of rock breaking

·         Water and soil protection

·         Bridge protection

·         Strengthening structure of soil

·         Protection seaside area.

·         roadway protection.
