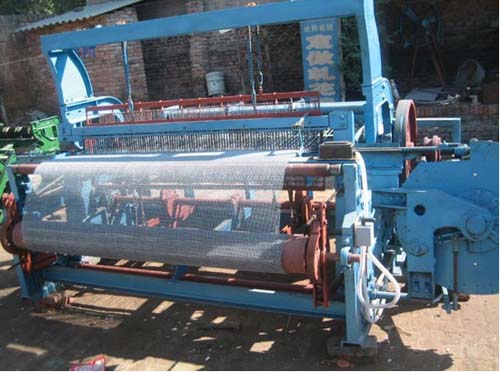

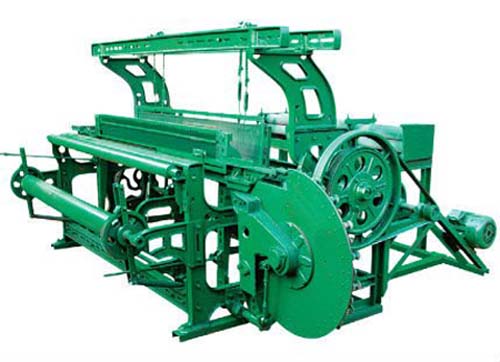

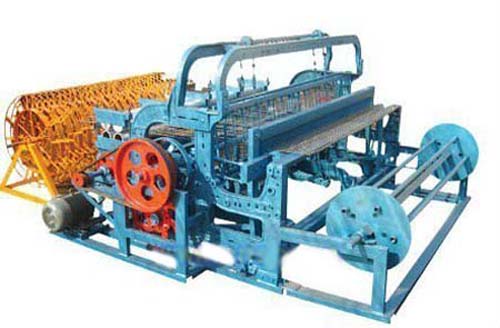

Automatic crimped wire mesh machine
Our crimped wire mesh machine may complete a series of working procedures from mesh rolling to weaving automatically.
Weaving width of 0.9-2.5m,wire diameter of 0.4-8.0mm,mesh opening 1*1-80*80mm2,weaving speed may reach 53 shuttles per minute,which has the characteristics of working time-saving,high speed,and one short forming,mesh products from this equipment go through working procedures of rolling-weaving to clip two bends on the corresponding position with tight structure,which are widely in coal,metallurgy,construction,storage,agriculture and poultry, and chemical industry,etc.
|
Type |
Dimensions of machine(L¡ÁW¡ÁH)m m 3 |
Total Weight(KG) |
Width(m) |
|
FDLZJ-SA-44 |
2500¡Á2100¡Á1350 |
1200 |
1.0 |
|
FDLZJ-SA-52 |
2500¡Á2300¡Á1350 |
1280 |
1.2 |
|
FDLZJ-SA-56 |
2500¡Á2400¡Á1350 |
1350 |
1.3 |
|
FDLZJ-SA-63 |
2500¡Á2600¡Á1580 |
1500 |
1.5 |
|
FDLZJ-SA-75 |
2500¡Á2900¡Á1580 |
1800 |
1.8 |
|
FDLZJ-SA-212 |
2500¡Á3400¡Á1650 |
2000 |
2.2 |
|
FDLZJ-A-44 |
2260¡Á2700¡Á1350 |
1550 |
1.0 |
|
FDLZJ-A-52 |
2260¡Á3000¡Á1350 |
1600 |
1.2 |
|
Weaving width of each model of weaving machine is adjustable limits |
|
