Test sieve

Test sieve weight :35kg/unit Motor Power :0.12kw



Test sieve

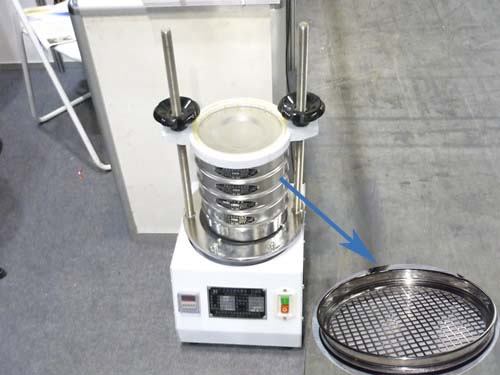

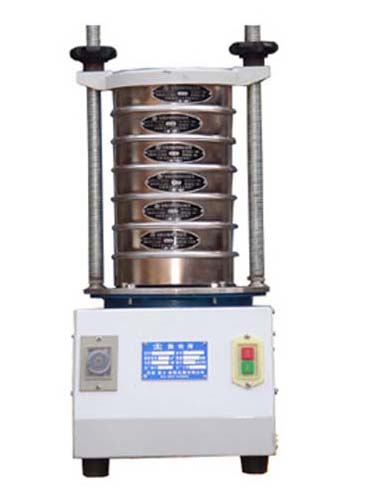

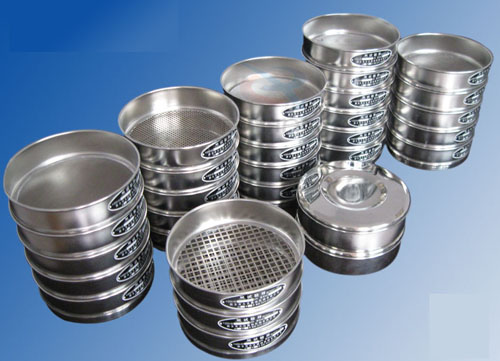

Test sieve is a vibration motor as vibration source, vibrating motor vibration driven sieve machine base vibration, conduction through the base to be placed in the base standard test sieve, standard testing sieve, less than the test surface mesh sieve materialsparticles into the lower screening test screen, so the layers of screening, on each test sieve leaving only the material of the same particle size. To achieve the separation of different particle size and to determine the size composition of this material. Make test sieve materials can effectively screening, grading, the purpose of filtering.   Serial number Name Unit Parameter 1 Put screen with a diameter mm φ200/φ100/φ75 φ200/φ100/φ75 2 Screening granularity mm 0.025～3 From 0.025 to 3 3 Motor Power Kw 0.12 (0.15 ordinary motor) 4 Noise dB Less than 50 5 Amplitude mm 0-3 6 Vibration frequency Beats / min  1400 7 Dimensions Dimensions 350:380:300 + N * 50 8 Power supply  V; HZ 220; 50 9 The whole weight Kg  35 Note: Our products are all technical parameters, appearance, size, kind prevail.

characteristics

◆ High efficiency, compact design, durability, and any powder, liquid can be screening.

◆ small size, the space is easy to move.

◆ screen machines can be placed up to eight test screen (with the bottom screen), a pellet at the same time precise separation of two to seven particles segments.

◆ timed automatic shutdown

◆ function of the whole operation easier

◆ noise, light weight;

◆ platform operation, need not be fixed.

◆ adjustable amplitude.
