Wind- Proof And Dust-Control Net
low carbon steel mesh sheet
Thickness range: From 0.2mm to 8.0mm
use:filter parts,metal fiter panel
Beauty and easily used
|
  |
Characteristic:

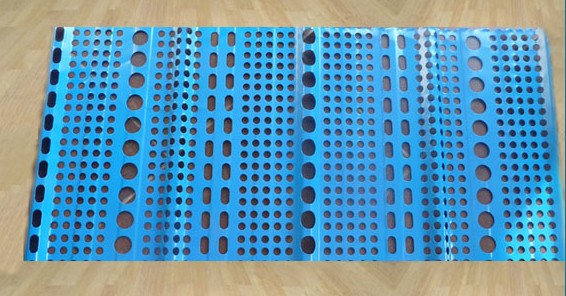

Wind Dust Network is a new product which made of perforated metal and can significantly reduce the wind speed, and the dust . Compared with the rigid structure of the wall ,Wind dust network is more efficient and economic.
Wind dust net : includes single peak wind dust net, twins peaks wind dust net and three peaks wind dust net.
Application:

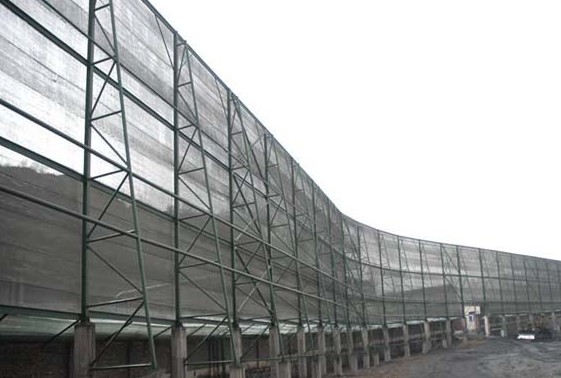

1. Power plants, coal mines, coking plants, coal washing plant, and other businesses to save coal field
2. Ports, terminals and markets a variety of coal storage yard
3. Iron and steel, building materials, cement companies such as a variety of open-air yard
4. Coal storage and station of Railway and highway transportation
5. Sites, road dust.
Single peak wind dust net£º
Width 270mm-450mm
Peak of high: 50mm-85mm,
Length: 0-6.2m.
Plate thickness 0.5mm-1.5mm.
We can produce according to customer's requirements.
Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.
Surface treatment: electrostatic powder coating.

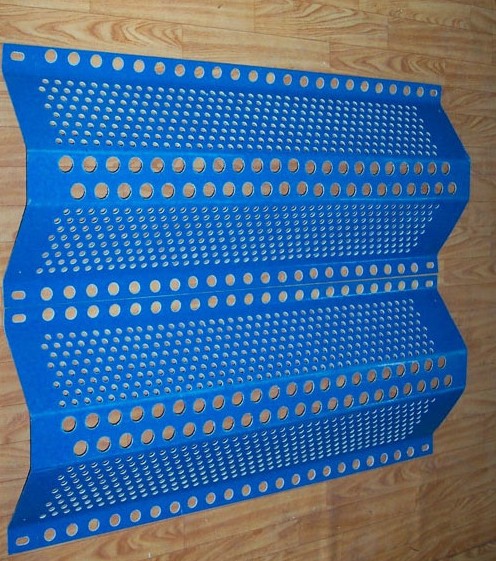

Twins peaks wind dust net£º
Width 540mm-620mm
Peak of high: 50mm-100mm,
Length: 0-6.2m.
Plate thickness 0.5mm-1.5mm.
We can produce according to customer's requirements.
Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.
Surface treatment: electrostatic powder coating.

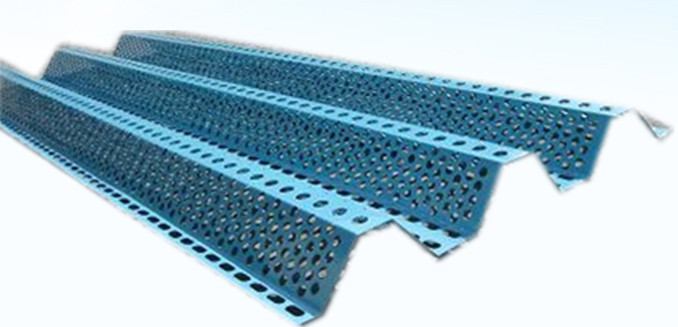

Three peaks wind dust net£ºCOST-EFFECTIVE SIZE IS: HS-810 THICKNESS0.7MM
Width 810mm-910mm
Peak of high: 50mm-80mm,
Length: 0-6.2m.
Plate thickness 0.5mm-1.5mm.
We can produce according to customer's requirements.
Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.
Surface treatment: electrostatic powder coating.
