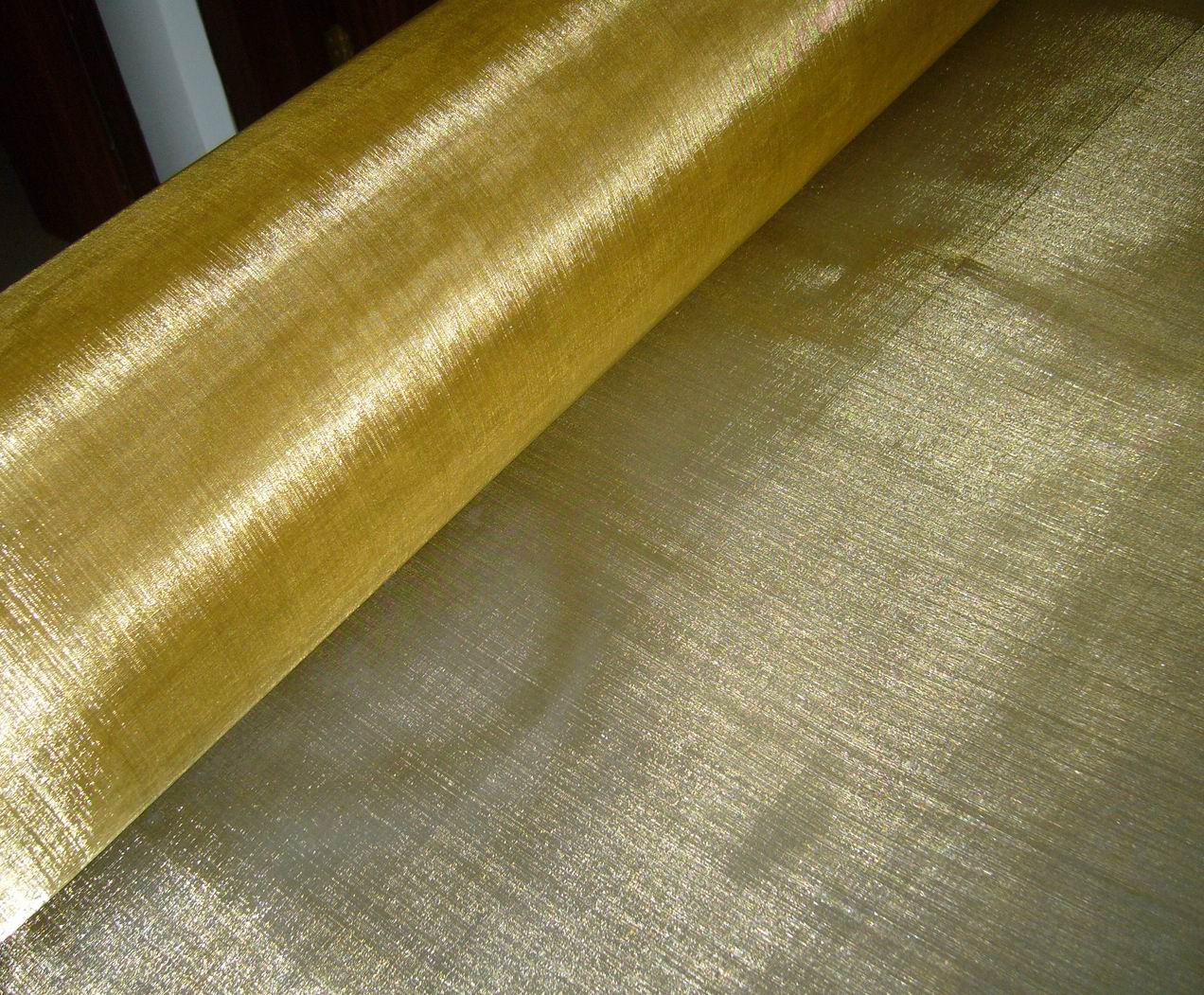

Brass wire mesh

Brass wire mesh

Material:Brass Red copper wire ,phosphor bronze wire
Weaving:plain weaving or twill weaving
Usage:all kinds of liquid and gas filter of powder

Material:Brass wire, phosphor bronze wire, or copper wire

Application: Seperation and sifting kinds pellet ,grain,porcelain earth and glass, chinaware printing, filter liquid, etc.

Specifications:

Brass wire cloth: 6mesh/inch-160mesh/inch;

Copper wire cloth 10mesh/inch-60mesh/inch;

Phosphor bronze wire cloth 120mesh-360mesh/inch

Width:0.914M, 1M, 1.5M

Length:30M/Roll

Weaving methods: Plain weave, twill weave or Dutch weave.

We are capable of supplying brass wire mesh from 1-200mesh, and phosphor bronze wire mesh from 1-500mesh. The following specifications are listed for your reference:

Mesh	Wire Dia. (MM)			Opening(mm)
Mesh	SWG	mm	inch	Opening(mm)
6mesh	22	0.711	0.028	3.522
8mesh	23	0.610	0.024	2.565
10mesh	25	0.508	0.020	2.032
12mesh	26	0.457	0.018	1.660
14mesh	27	0.417	0.016	1.397
16mesh	29	0.345	0.014	1.243
18mesh	30	0.315	0.012	1.096
20mesh	30	0.315	0.0124	0.955
22mesh	30	0.315	0.0124	0.840
24mesh	30	0.315	0.0124	0.743
26mesh	31	0.295	0.0116	0.682
28mesh	31	0.295	0.0116	0.612
30mesh	32	0.247	0.011	0.573
32mesh	33	0.254	0.010	0.540
34mesh	34	0.234	0.0092	0.513
36mesh	34	0.234	0.0092	0.472
38mesh	35	0.213	0.0084	0.455
40mesh	36	0.193	0.0076	0.442
42mesh	36	0.193	0.0076	0.412
44mesh	37	0.173	0.0068	0.404
46mesh	37	0.173	0.0068	0.379
48mesh	37	0.173	0.0068	0.356
50mesh	37	0.173	0.0068	0.335
60X50mesh	36	0.193	0.0076	-
60X50mesh	37	0.173	0.0068	-
60mesh	37	0.173	0.0068	0.250
70mesh	39	0.132	0.0052	0.231
80mesh	40	0.122	0.0048	0.196
90mesh	41	0.112	0.0044	0.170
100mesh	42	0.012	0.004	0.152
120X108mesh	43	0.091	0.0036	-
120mesh	44	0.081	0.0032	0.131
140mesh	46	0.061	0.0024	0.120
150mesh	46	0.061	0.0024	0.108
160mesh	46	0.061	0.0024	0.098
180mesh	47	0.051	0.002	0.090
200mesh	47	0.051	0.002	0.076
