Phosphorbronze wire mesh BD-1

Phosphorbronze wire mesh BD-1

Wire diameter:SWG24-50

Weave style:Plain weave

Material:bronze wire etc.

Type:weave wire mesh

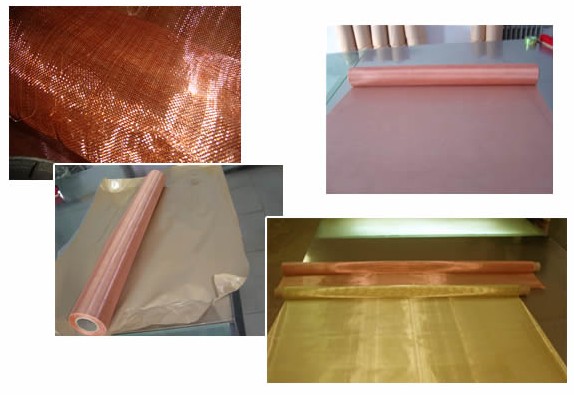

Phosphor bronze wire mesh

Brass wire mesh (cloth) and phosphor bronze wire mesh (wire cloth) are frequently used as sieving and filtering materials in screening pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas. Brass wire mesh and wire cloth possess greater strength than copper wire mesh or bronze wire mesh. Copper wire cloth finds wide usage in traveling water screens, radio frequency interference shielding, sugar and marine applications.

Mesh/inch wire SWG aperture mm 8 24 2.616 10 24 1.98 12 26 1.66 14 26 1.357 16 30 1.27 18 30 1.096 20 32 0.88 30 34 0.613 40 38 0.485 50 39 0.378 60 40 0.301 70 41 0.251 80 42 0.216 90 43 0.191 100 43 0.164 120 45 0.140 140 45 0.110 160 46 0.087
