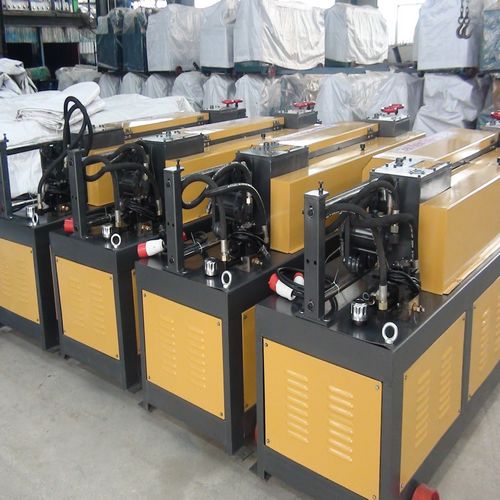

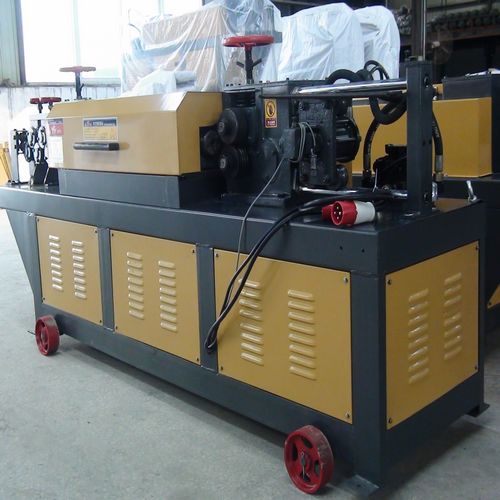

Hydraulic Automatic wire rod straightening and cutting machine
Hydraulic wire straightening and cnc wire cutting machine , mainly used for straightening, cutting off the construction cold-rolled ribbed steel bars, hot-rolled ¢ó-class steel bars and cold-rolled round steel bars with set rulers, can also be used for hot-rolled plate round steel bars.
|
Items |
GT4-12 |
GT6-14C |
GT6-14D |
|
steel bar diam. |
¦µ4-12mm |
¦µ6-14mm |
¦µ6-14mm |
|
cutting length |
800-9000mm |
500-8000mm |
800-8000mm |
|
cutting error |
¡À1cm |
¡À1cm |
¡À1cm |
|
traction speed |
45m/min |
52m/min |
55m/min |
|
traction motor power |
7.5KW-4 pole |
11KW-4 pole |
4KW-6 pole |
|
straighten motor power |
11KW-4 pole |
|
cutting motor power |
5.5KW-4 pole |
|
voltage |
380V |
380V |
380V |
|
straightening degree |
¡À2mm/m |
¡À2mm/m |
¡À2mm/m |
|
Net weight |
1000KGS |
1500KGS |
1800KGS |
|
Gross weight |
1200KGS |
1700KGS |
2000KGS |
|
overall dimension(mm) |
2300*800*1100mm |
2940*800*1100mm |
3400*800*1100mm |
|
